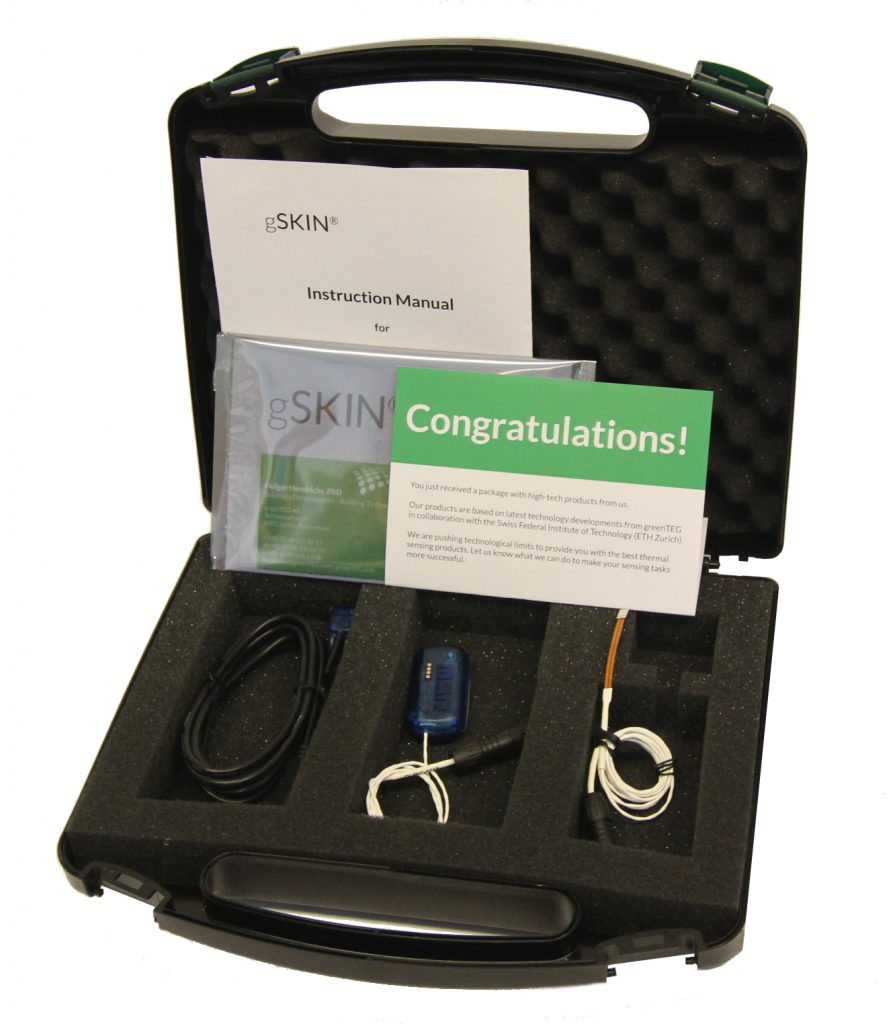

Heat Flux Measurement Kit

열유속 및 온도 차이를 모니터링하고 분석하는 가장 빠르고 쉬운 솔루션입니다.

Plug-and-Play

gSKIN® 열유속 센서와 데이터 로고 및 소프트웨어가 제공되며 바로 사용 가능한 플러그 앤 플레이 솔루션 입니다.

  • Calibrated Plug-and-Play solution
  • Ready-to-use heat flux data with a resolution of < 0.41 W/m²
  • Logger and live read-out
  • Stores up to 2 million data points
  • Battery lifetime >1 month
  • Read-out software included
  • USB interface
  • For scientific and analytical measurements

Features

Article NumberA-161895
gSKIN® KIT includesSensor: gSKIN®-XM 27 9C (4.4mm x 4.4mm) / Logger: gSKIN® DLOG-4219
/ Mounting Tape
Sensor CalibrationMethod cohering to ISO8301, mean temperature of 22.5 °C
Heat Flux Range Min / Max± 550W/m²
Heat Flux Resolution< 0.41W/m²
Min. Sensor Sensitivity (S)1.5μV/(W/m²)
Response Time (0-95%)0.2s / 0.7s
Logger Dimensions (l x w x h)52 x 20 x 15mm
Measurement Frequency50/s to 2/d
Bit Resolution12 bits
Data Storage Capacityup to 2’000’000 measurements
Battery Lifetimeup to 30 days (rechargeable)
Computer InterfaceUSB
Operating SystemWindows 2000 / XP / Vista / 7 / 8
Operation ModesAutonomous / Button Triggered / Live
Operating Temperature Range Min/Max-50°C / 150°C (-25°C / 65°C for Logger)
Calibration Temperature Range Min/Max-30°C / 70°C
Calibration Accuracy± 3%
Heat Flux Sensor / Logger Cable Length1.5m (with connector)
