U-Value Measurement Kit

건축 및 건설 산업을 위한 열관류율 측정 플러그 앤 플레이 솔루션입니다.

Plug-and-Play

gSKIN®-XO 열유속 센서와 데이터 로고 및 소프트웨어가 제공되며 바로 사용 가능한 플러그 앤 플레이 솔루션 입니다.

  • Calibrated Plug-and-Play solution
  • Measurement of U-value (W/(m²K)), heat flux (W/m²), and 2 temperatures (°C)
  • Compatible with standards ISO 9869 and ASTM C1046 /ASTM C1155
  • Stores up to 2 million data points
  • Battery lifetime >1 month
  • High sensitivity thermal detectors
  • Read-out software included
  • Compact design
  • USB interface
  • Comes with MOUNT-1214 (3 x thermal conductive pad)

Features

Article NumberA-163479

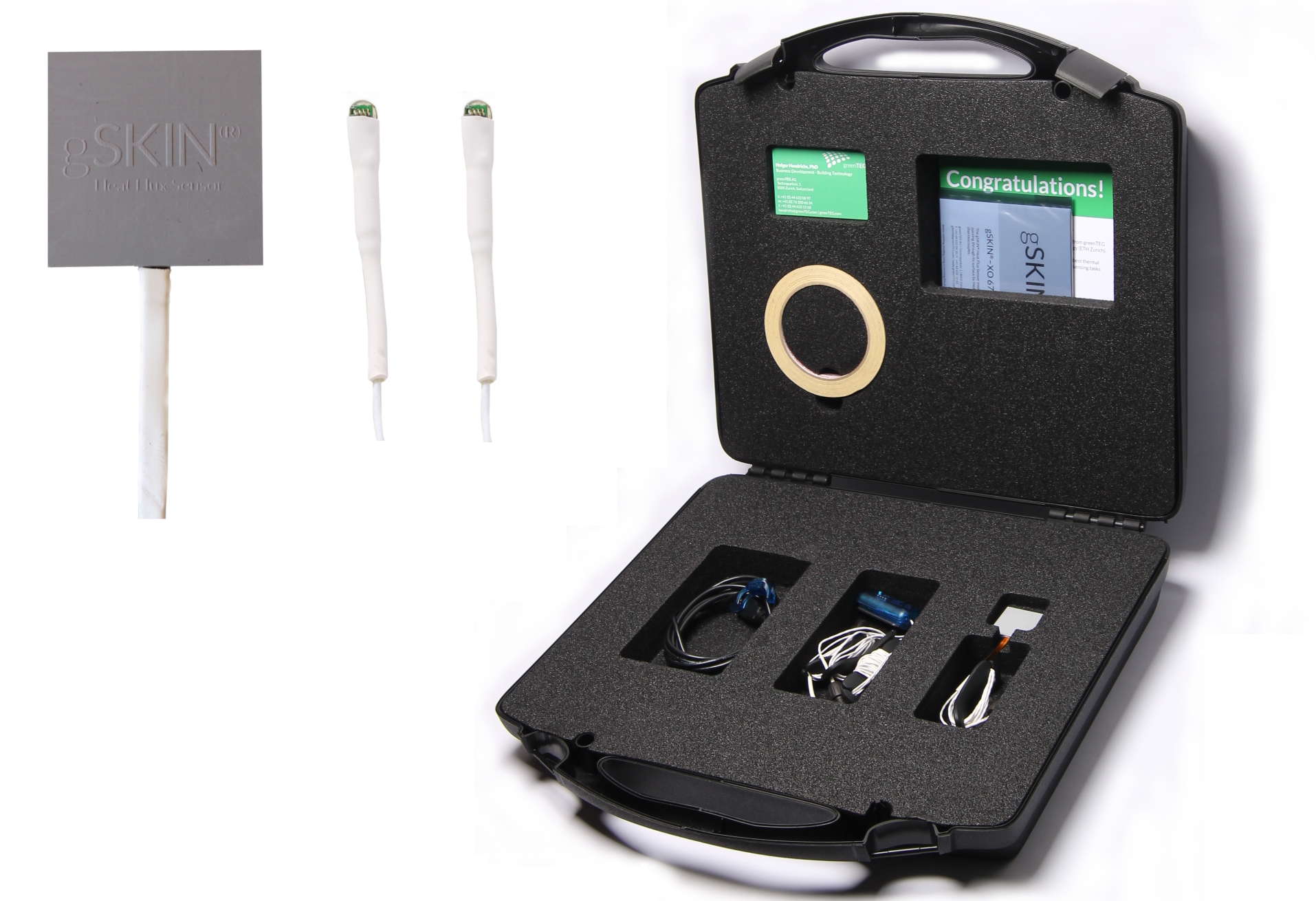

gSKIN® KIT includesSensor: gSKIN®-XO 67 7C (30mm x 30mm) / Logger: gSKIN® DLOG-4231
incl. 2 temperature sensors / Mounting Tape
Heat Flux Range Min / Max± 35W/m² (요청시 ± 400W/m²까지 가능)
Heat Flux Resolution< 0.11W/m²
Min. Sensor Sensitivity (S)15μV/(W/m²)
Temperature Accuracy±0.5°C (-10...+65°C) ±2.0°C (-55...+125°C)
Logger Dimensions (l x w x h)52 x 20 x 15mm
Measurement Frequency1/sec to 1/h
Bit Resolution12 bits
Data Storage Capacityup to 2’000’000 measurements
Battery Lifetimeup to 30 days (rechargeable)
Computer InterfaceUSB
SoftwareInstallation - SW sent by email / via download link
Operating SystemWindows 2000 / XP / Vista / 7 / 8
Operation ModesLive display / Data logger
Operating Temperature Range Min/Max-50°C / 150°C (-20°C / 65°C for Logger)
Calibration Temperature Range Min/Max-30°C / 70°C
Calibration Accuracy± 3%
Temperature Sensor 1 / 2 Cable Length5.0m / 1.0m
Heat Flux Sensor / Logger Cable Length1.0m / 0.5m (with connectors)
